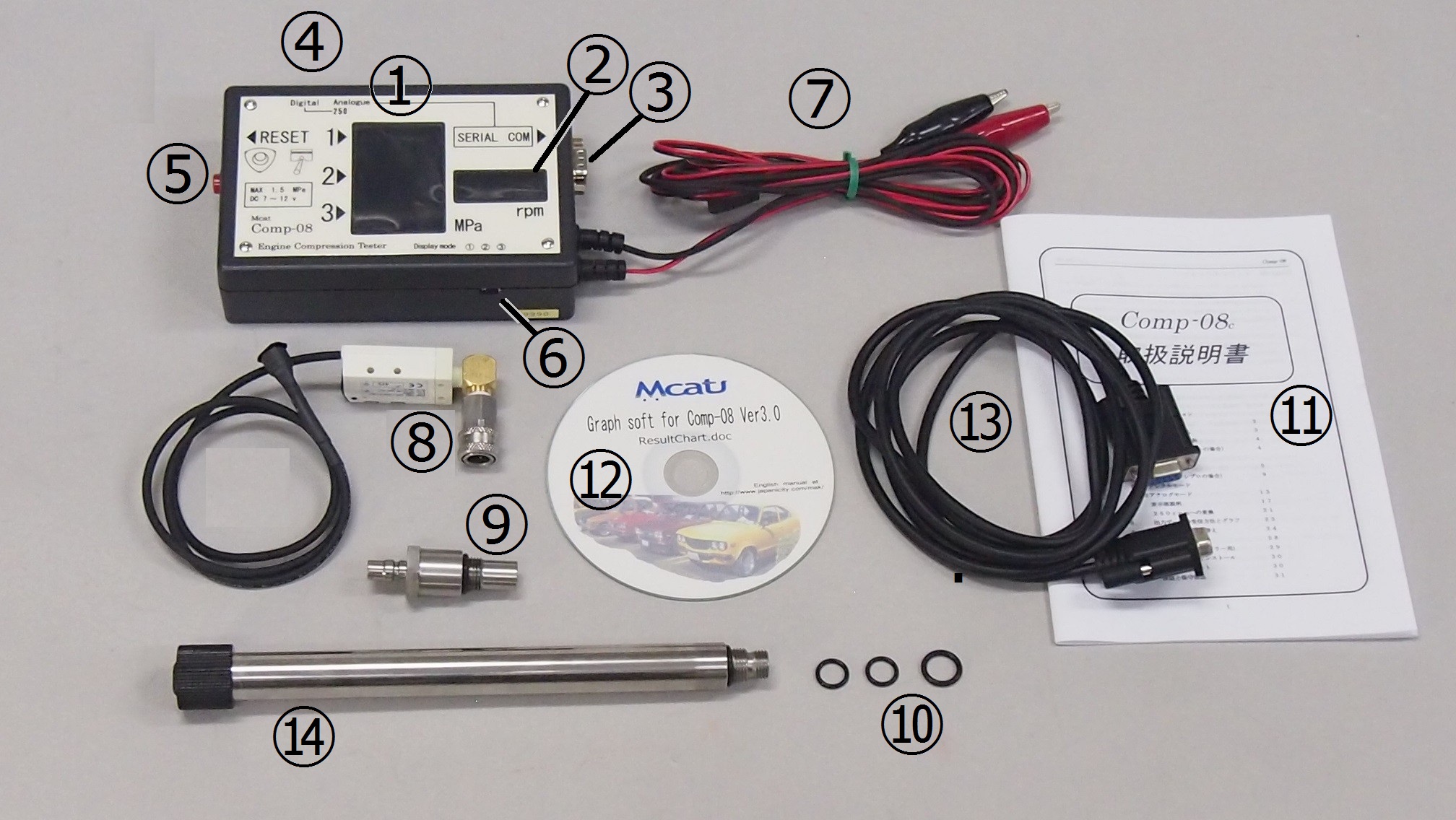

Parts Overview


1. Compression pressure display window.
2. RPM display window.
3. RS232C output.
4. Digital/Analogue(250) mode change switch.
5. Reset switch.
6. Unit display mode change switch (Pa)(Kg/cm²)(PSI).
7. Power supply terminal.
8. Sensor for rotary engine.
9. Plug hole adapter for rotary engine.
10. Spare "O"-rings.
11. Instruction manual.
12. CD-ROM for graph drawing softwear.
13. RS232C cable for PC to the Compression Tester.
14. Plug hole adapter for piston engine (sensor inside)
