* The Comp-08 was already available for the rotary
engine and has now been improved, the newly developed program can
now also be used with the piston engine. Almost all gasoline
engines can be measured. (Also required is adapter for each
engine)
* Attach the adapter to a spark plug hole to measure the
compression pressure and the RPM of the engine digitally by
cranking for several seconds.
* The spark plug adaptor is available to support both rotary
engines and piston engines. The adapter for piston engines is a
12 or 14mm multi-type. (In a case special plug type, please ask)
* The units feature a conversion switch to display a standard
number of rotations allowing for the display of the same
conditions
* With a connection to a PC, the measured values can be logged
and displayed graphically, also allowing for the saving of the
data (Exclusively for Windows)
* Small, lightweight, and compact in design.
* Taking measurements is a simple process and can be handled by
one person.
* Pa (Pascal) value, Kg/cm 2
or PSI (pound) are supported by the units.
* The digital display and graph drawing function can be used as a
visual aid to demonstrate power as a sales tool to customers and
for sales promotions.
* The logging and preservation of data is valuable for
maintenance records for customers.

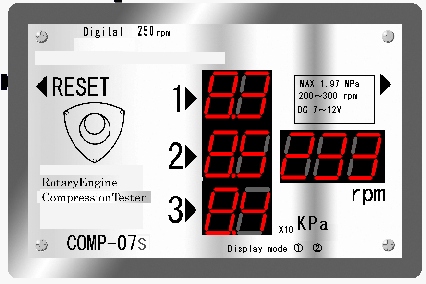

Comp-08 | Comp-07S |
Specifications of the Tester
Comp-08 (for rotary and/or piston engine) | Comp-07S (Only for rotary engine) | |
Power supply | DC 7V-12V (Will run from car battery) | DC 7V-12V (Will run from car battery) |
Consumption current | Under 0.5A | Under 0.5A |
Sensor performance | Up to 1.5Mpa/15.3 kg/cm^2/ 218 PSI | Up to 0.97Mpa/9.9 kg/cm^2 |
Circuit protection | Anti-reverse connection. | Anti-reverse connection. |
External size | W: 150 x H: 100 x D:
40(mm) Projection portions are not included. |
W: 150 x H: 100 x D: 40(mm) Projection portions are not included. |
Length of sensor cable | 1.8m | 1.8m |
Length of power cable | 1.8m | 1.8m |
Number of pressure display digits | 3 | 2 |
Digital mode | ||
Measuring range | Upto 1.5MPa/ 15.3 kg/cm^2 / 218 PSI | Upto 9.7MPa/ 9.9 kg/cm^2 |
Measurement accuracy | 0.01MPa/0.1 kg/cm^2 / 1.4 PSI | 0.01MPa/0.1 kg/cm^2 |
Measuring rotations | 200rpm - 300rpm | 200rpm - 300rpm |
Rotations accuracy | 1rpm | 1rpm |
Analogue mode | A notebook PC etc. is required | -------- |
Measuring range | Upto 1.5MPa / 15.3 kg/cm^2 / 218 PSI | -------- |
Measurement accuracy | 0.05 MPa / 0.5 kg/cm^2 / 7 PSI | -------- |
Measuring rotations | Up to 300 rpm | -------- |
Measurement time | Approx. 5 seconds | -------- |
. | ||
Price | 66,400 JPY(with one rotary adapter) | No stock |
Specifications of the sensor with plughole adapter.
For piston engine | For rotary engine | |
Max pressure | Upto 1.5MPa/15.3kg/cm2/218 PSI | Upto 1.5MPa/15.3kg/cm2/218 PSI |
External size | D: 19 x L: 230(mm) | D: 30 x L: 92(mm) |
Correspondence plug | D: 12/14mm (Multi) P=1.25mm | D: 14mm P=1.25mm |
. | . | . |
Price | 30,000JPY | 24,500JPY |
.

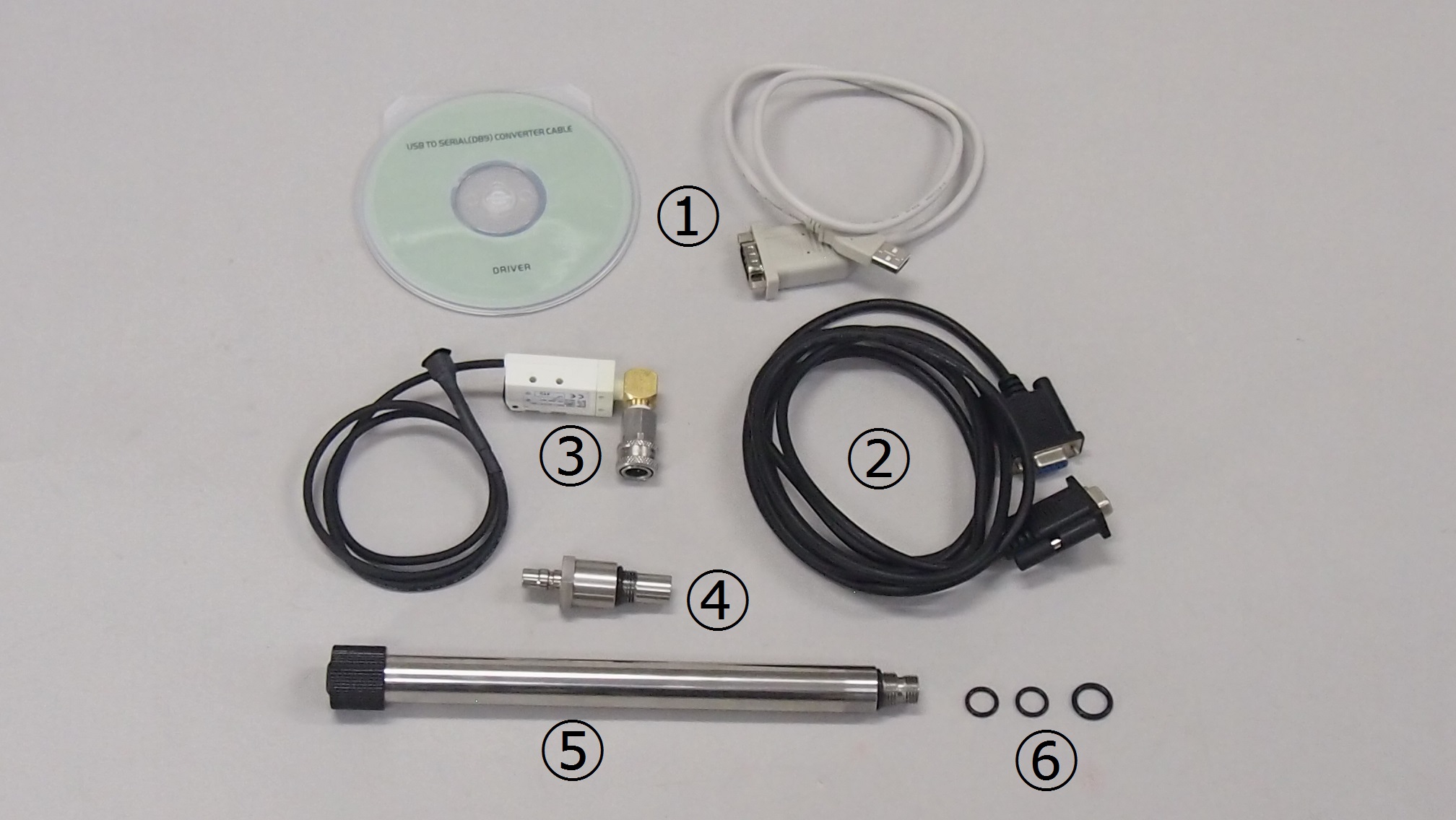

Replacement and option parts | . | |||
1. USB cable with driver soft | 6,000JPY | |||
2. RS232C serial cable | 2,400JPY | |||
3. Sensor for rotary engine | 20,000JPY | |||
4. Plughple aduptor for rotary engine | 4,500JPY | |||
5. Standard adapter for piston engine with sensor | 20,000JPY | |||
6. Heat-resistant O-ring, Two pieces set. | 350JPY | |||
( Shipping costs are not included ) | ||||
Prices may change in exchange late |
